DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm

Βασικές πληροφορίες

Τόπος καταγωγής:	Κίνα
Μάρκα:	Kaideli
Πιστοποίηση:	CE,CB,ISO9001-2008
Αριθμό μοντέλου:	KUDL/KUDD/KUDJ

Ποσότητα παραγγελίας min:	1 κομμάτι
Τιμή:	$100.00 - $1,700.00/sets
Συσκευασία λεπτομέρειες:	Ξύλινη συσκευασία κιβωτίων
Χρόνος παράδοσης:	10-15 ημέρες
Όροι πληρωμής:	TT, LC, Western Union
Δυνατότητα προσφοράς:	2000 σύνολο/σύνολα ανά Μήνας

Καλύτερη τιμή Επικοινωνήστε

Εφαρμόσιμες βιομηχανίες:	Ξενοδοχεία, καταστήματα οικοδομικού υλικού, καταστήματα επισκευής μηχανημάτων, τρόφιμα & εργοστάσιο	Θέση αιθουσών εκθέσεως:	Βιετνάμ, Φιλιππίνες, Μεξικό, Ταϊλάνδη, Καζακστάν, Νιγηρία, Ουζμπεκιστάν, Τατζικιστάν
Τηλεοπτική εξερχόμενος-επιθεώρηση:	Παρεχόμενος	Έκθεση δοκιμής μηχανημάτων:	Παρεχόμενος
Type:	Evaporator	Εφαρμογή:	Μέρη ψύξης
Εξουσιοδότηση:	1 έτος	Χρώμα:	Επιλογή (άσπρος, πράσινος, μαύρος)
Ψυκτική ουσία:	R404A/R507/R22	Τάση:	220V/380V
Πρότυπο:	Kudd-080	Εμπορικό σήμα:	Kaideli
Υλικό πτερυγίων:	Αργίλιο	Όνομα προϊόντων:	Εξατμιστήρας
Υλικό σωλήνων:	χαλκός	Μετά από την υπηρεσία εξουσιοδότησης:	Σε απευθείας σύνδεση υποστήριξη
Θέση τοπικής υπηρεσίας:	Κανένας	Υπηρεσία μεταπωλήσεων παρεχόμενη:	Τηλεοπτική τεχνική υποστήριξη
Λιμένας:	Ningbo/Σαγκάη/Guangzhou	Όρος:	Νέος
Επισημαίνω:	εξατμιστήρας κρύας αποθήκευσης 6mm , εξατμιστήρας κρύας αποθήκευσης 9mm

Product name: DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm

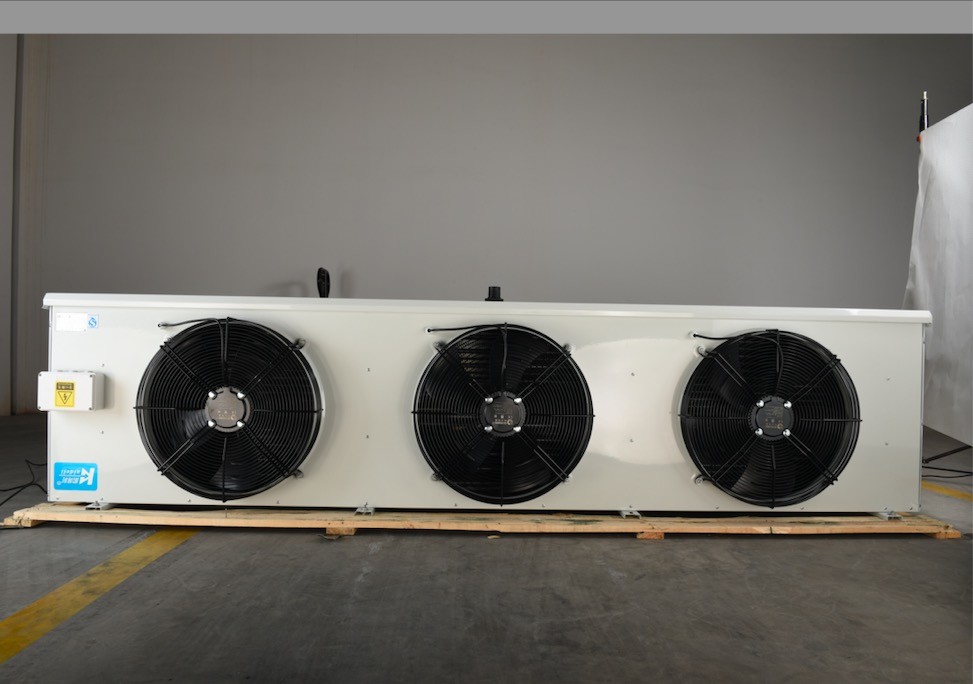

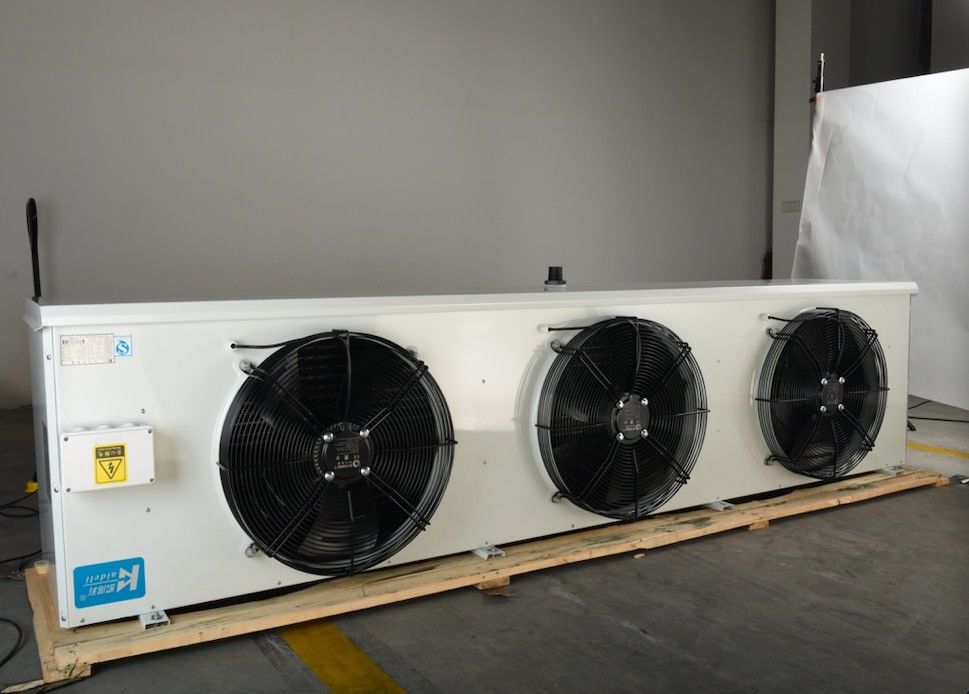

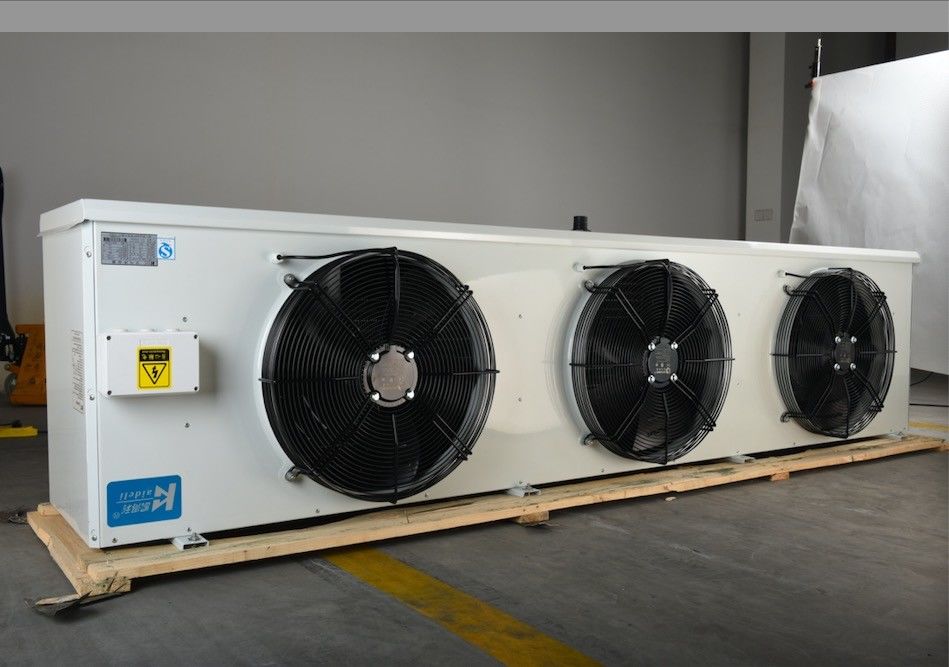

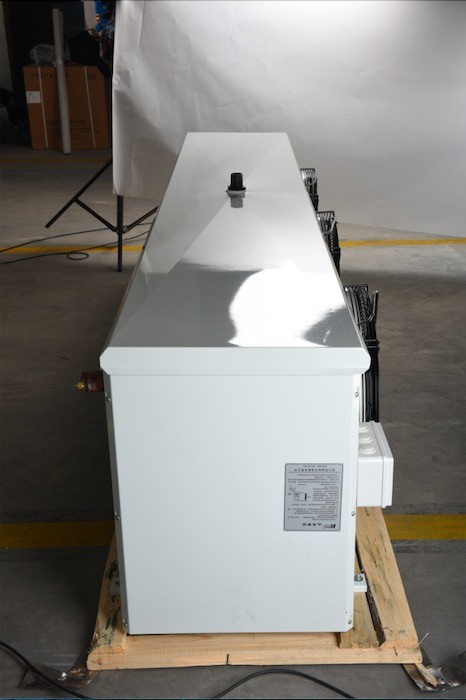

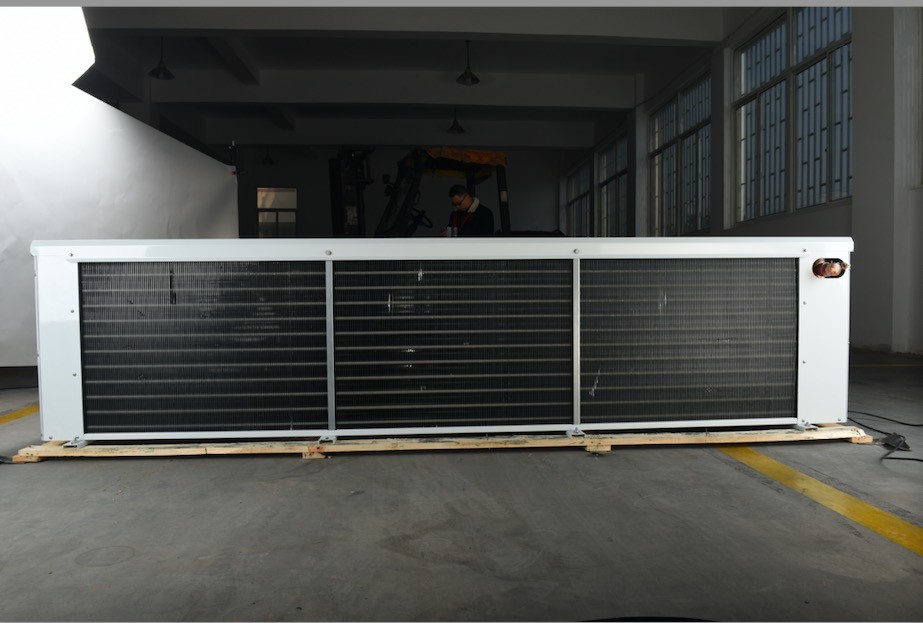

1.Need detailed pictures?

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 0

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 1

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 2

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 3

All the parts copper,fan, fin and outside we choose famous brand,also can customize:

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 4

2.How to choose model and what is specification?

Nomination:KUDL016-E2C

K(Kaideli)U(unit cooler)D(ceiling type)L/D/J(high/medium/low temp.)016(area of cooling surface)

-E(electric defrost)2/3/4(fan quantity)C(design type)

DL-High temperature type (cold room temperature 12℃~-2℃)fin space: 4.5mm
Model	Capacity	Area	Qty	Fan Φ	Airflow	Air press	Shot range	Power	Defrost Coil	Drip pan	Vol.
	(kW)	(m2)		(mm)	(m2/h)	(pa)	(m)	(W)	(kW/l)	(kW)	(V)
KUDL016-E2C	3.2	16	2	300	2×1563	90	10	2×75	0.36x4	0.36x2	380
KUDL020-E2C	4.1	20	2	300	2×1563	90	10	2×75	0.37x4	0.37x2	380
KUDL030-E2C	6.1	30	2	350	2×2290	90	10	2×140	0.46x4	0.46x2	380
KUDL040-E2C	8	40	2	350	2×2290	90	10	2×140	0.49x6	0.49x2	380
KUDL060-E2C	11.2	60	2	400	2×3400	90	13	2×180	0.51x6	0.51x2	380
KUDL080-E2C	16.2	80	2	500	2×6570	90	15	2×450	0.61x6	0.61x2	380
KUDL105-E2C	21.5	105	2	500	2×6570	90	15	2×450	0.81x6	0.81x2	380
KUDL135-E3C	27.6	135	3	500	3×6570	90	15	3×450	0.83x6	0.83x4	380
KUDL160-E3C	32.8	160	3	500	3×6570	90	15	3×450	1.0x6	1.0x4	380
KUDL185-E4C	37.6	185	4	500	4×6570	90	15	4×450	1.1x6	1.1x4	380
KUDL210-E4C	42.7	210	4	500	4×6570	90	15	4×450	1.1x8	1.1x4	380
KUDL260-E3C	52.9	260	3	550	3×8720	90	15	3×600	1.2x12	1.2x4	380
KUDL330-E4C	67.6	330	4	550	4×8720	90	15	4×600	1.1x14	1.1x4	380
KUDL400-E4C	82	400	4	600	4×10820	120	15	4×780	1.3x14	1.3x4	380

DD-Medium temperature type (cold room temperature -2℃~-10℃)fin space: 6.0mm
Model	Capacity	Area	Qty	Fan Φ	Airflow	Air press	Shot range	Power	Defrost Coil	Drip pan	Vol.
	(kW)	(m2)		(mm)	(m2/h)	(pa)	(m)	(W)	(kW/l)	(kW)	(V)
KUDD012-E2C	2.2	12	2	300	2×1563	90	10	2×75	0.36×6	0.36x2	380
KUDD015-E2C	2.8	15	2	300	2×1563	90	10	2×75	0.37×6	0.37x2	380
KUDD022-E2C	3.7	22	2	350	2×2290	90	10	2×140	0.46x6	0.46x2	380
KUDD030-E2C	5.7	30	2	350	2×2290	90	10	2×140	0.49x6	0.49x2	380
KUDD040-E2C	7.5	40	2	400	2×3400	90	13	2×180	0.51x8	0.51x2	380
KUDD060-E2C	11.4	60	2	500	2×6570	90	15	2×450	0.61x8	0.61x2	380
KUDD080-E2C	15.2	80	2	500	2×6570	90	15	2×450	0.81x8	0.81x2	380
KUDD100-E3C	18.7	100	3	500	3×6570	90	15	3×450	0.83x10	0.83x4	380
KUDD120-E3C	22.4	120	3	500	3×6570	90	15	3×450	1.0x8	1.0x4	380
KUDD140-E4C	26.2	140	4	500	4×6570	90	15	4×450	1.1x8	1.1x4	380
KUDD160-E4C	30	160	4	500	4×6570	90	15	4×450	1.1x10	1.1x4	380
KUDD200-E3C	37.4	200	3	550	3×8720	90	15	3×600	1.2x12	1.2x4	380
KUDD250-E4C	46.8	250	4	550	4×8720	90	15	4×600	1.1x14	1.1x4	380
KUDD300-E4C	56.2	300	4	600	4×10820	120	15	4×780	1.3x14	1.3x4	380

DJ- Low temperature type (cold room temperature -10℃~-31℃)fin space: 9.0mm
Model	Capacity	Area	Qty	Fan Φ	Airflow	Air press	Shot range	Power	Defrost Coil	Drip pan	Vol.
	(kW)	(m2)		(mm)	(m2/h)	(pa)	(m)	(W)	(kW/l)	(kW)	(V)
KUDJ008-E2C	1.2	8	2	300	2×1563	90	10	2×75	0.36×6	0.36x2	380
KUDJ010-E2C	1.5	10	2	300	2×1563	90	10	2×75	0.37×6	0.37x2	380
KUDJ015-E2C	2.3	15	2	350	2×2290	90	10	2×140	0.46x6	0.46x2	380
KUDJ020-E2C	3.3	20	2	350	2×2290	90	10	2×140	0.49x6	0.49x2	380
KUDJ030-E2C	4.8	30	2	400	2×3400	90	13	2×180	0.51x8	0.51x2	380
KUDJ040-E2C	7.1	40	2	500	2×6570	90	15	2×450	0.61x8	0.61x2	380
KUDJ055-E2C	8.9	55	2	500	2×6570	90	15	2×450	0.81x8	0.81x2	380
KUDJ070-E3C	11.5	70	3	500	3×6570	90	15	3×450	0.83x10	0.83x4	380
KUDJ085-E3C	14.3	85	3	500	3×6570	90	15	3×450	1.0x8	1.0x4	380
KUDJ100-E4C	17.1	100	4	500	4×6570	90	15	4×450	1.1x8	1.1x4	380
KUDJ115-E4C	19.6	115	4	500	4×6570	90	15	4×450	1.1x10	1.1x4	380
KUDJ140-E3C	23.8	140	3	550	3×8720	90	15	3×600	1.2x12	1.2x4	380
KUDJ170-E4C	29.8	170	4	550	4×8720	90	15	4×600	1.1x14	1.1x4	380
KUDJ210-E4C	35.7	210	4	600	4×10820	120	15	4×780	1.3x14	1.3x4	380

How to select correct evaparator:

Generally,Choose evaporator capacity=cold room cooling capacity *1.15

1.When the cold room temperature is around 0℃, select 4.5mm as fin space.

Evaporator choose=1.0*Q0

2.When the cold room temperature is around -18℃, select 6mm as fin space.

Evaparator choose=1.1*Q0

3.When the cold room temperature is around -25℃, select 9mm as fin space.

Evaparator choose=1.27*Q0

Remarks: The water defrost and hot gas defrost type are also optional.

Customized specification leave me message for details.

3.Want to know other related products?-click picture for detailed specification

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 5

4.How to assure quality? Any procedure?

Our QC department will make sure of each step

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 6

5.Do you factory?
We are factory established in 1995 and through 28years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 7

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 8

6.Do you attend exhibition?

Each year we will attend domestic national and foreign exhibition,also we will support our agent to attend exhibition,welcome to join us.

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 9

7.Why choose us

Professional:28 years focus one thing-refrigeration equipments

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 10

Material we use sufficient

DD/DL/DJ Refrigeration Cold Storage Evaporator air cooler 4.5mm 6mm 9mm 11

Certificate:CE, ISO, and cetiifcate of producing special pressure equipment

8.Projects reference?

9.FAQ

1, Q:Where is your factory address?

A:We are factory and located in refrigeration equipment producing base Shengzhou,Zhejiang province.

2, Q: What is your package?

A: Our package comply to custom require not include original wood.

3, Q:What is your MOQ?

A: Ordinary products can order from 1 set.

4, Q: Can you offer sample?

A: Yes,we can offer sample.and cost and delivery at your charge.

5, Q:I can't find products on your list?

A: Please contact me directly.

6,Q:How can i confirm your factory?

A: We have third party verified document of Bureau Veritas report,you can download in company page or leave me message to get.
