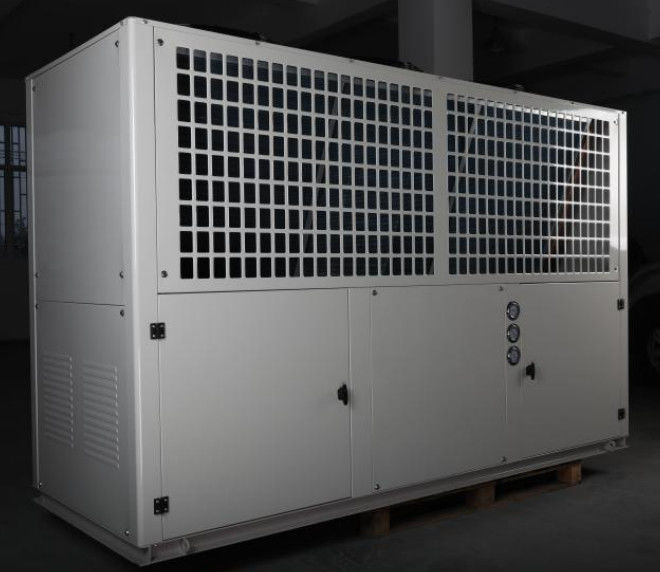

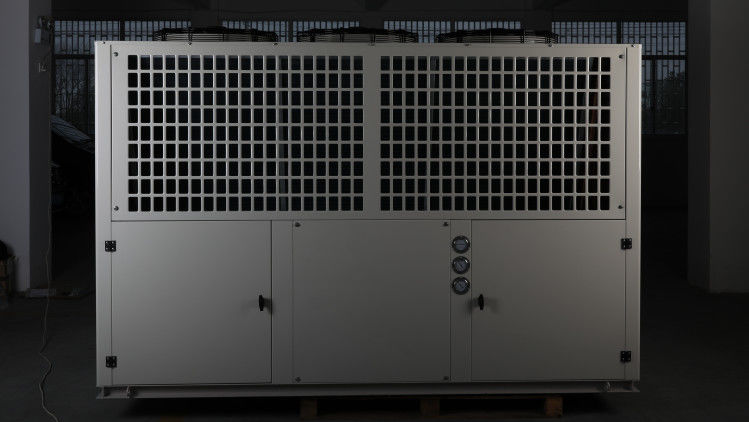

TE series box-type condensing unit product overview
TE series condensing unit is equipped with Emerson scroll compressor as the main component, which is designed with double-layer and large box structure; this series of products have the following features:
1.The compressor is Emerson medium-temperature ZB series compressor and low-temperature ZFI series compressor with EVI.
2.The unit is designed for medium temperature and low temperature applications, of which the medium-temperature unit is mainly used for the cold store of -2 ~ 5 °C, and the low-temperature unit is mainly used for the cold store of -15 ~ -35 °C.
3.The enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance, quite suitable for outdoor use; it is designed with double-layer structure, namely upper and lower, which has a large operating space and is convenient to clean the condenser and chassis; the compressor's chassis cover is connected with hinge structure, which is convenient for operation and maintenance.
4.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
5.The fan tube is designed with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
6.The condenser is designed in U-shaped structure, with fewer pipes, large air intake area and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit;
8.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.
Unit Configuration
Medium-temperature and high-temperature uni
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Note:●Standard components,○ Optional component,/Not available
Low-temperature unit
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Note:●Standard components,○ Optional component,/Not available
Support and Services
Our Cold Room Condensing Unit product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, maintenance, troubleshooting, and any technical queries you may have. Additionally, we offer training programs and resources to help you maximize the efficiency and longevity of your unit. Rest assured that with our dedicated technical support, you can confidently rely on the performance and durability of our Cold Room Condensing Unit.
